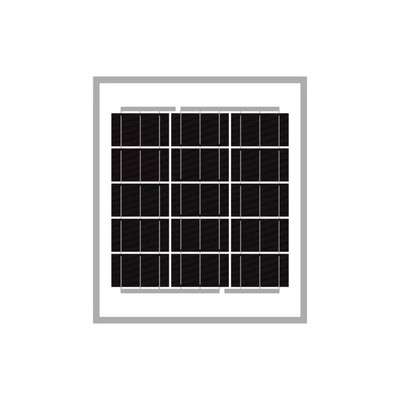

5W 6V Solar Panel
- (030P3001A)
- In stock
- SKU:
- ST-5Q-6
Add to Quote
- Nominal 6V DC for standard output.
- Outstanding low-light performance.
- Heavy-duty anodized frames.
- High transparent low-iron, tempered glass.
- Designed to withstand high wind pressures, hail and heavy snow.
- Quality aesthetic appearance.
- Electrical Characteristics
- Module Type ST-5Q-6
- Maximum power (Pmax) 5W
- Voltage at Pmax (Vmp) 8.6V
- Current at Pmax (Imp) 0.59A
- Open-circuit voltage (Voc) 10.15V
- Short-circuit current (Isc) 0.62A
- Module Efficiency 21.2% *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25°C
- Rating Characteristics
- Operating temperature -40°C to 65°C
- Maximum system voltage 600V DC
- Power tolerance ±5%
- Module Fire Performace Type 1 (for US) *NOCT: Nominal operating cell temperature (the data is only for reference)
- Specifications
- Cells Monocrystalline silicon solar cell
- No. of cell and connections 15(5x3)
- Module dimension 8.86in. x 7.68in. x 0.71in. [225mm x 195mm x 18mm]
- Weight 1.25bs[0.57kg]
- Temperature Characteristics
- Temperature coefficient of Voc -0.36%/K
- Temperature coefficient of Isc +0.07%/K
- Temperature coefficient of power -0.38%/K
- NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
*[Download Warranty&Policy Here]Warranty: 1-year limited warranty; 5-Year workmanship warranty; 10-year performance warranty - at least 90% rated power output; 25-year performance warranty - at least 80% rated power output. For details, please view the full Warranty & Policy page.
