10’ 18AWG 2 Core Cable, 3A Diode and 3/8 Ring Connector
- (030P3001A)
- In stock
- SKU:
- SLCBL-55

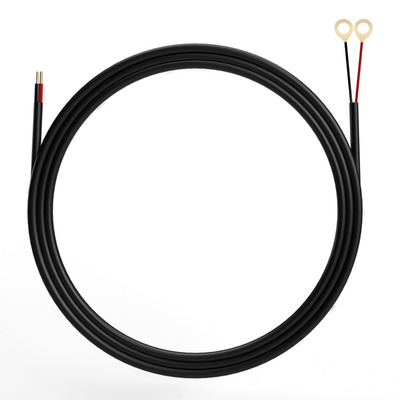

This 10-foot 18AWG 2-core cable features a pre-attached 3/8" ring terminal for quick, secure installations. UL62 compliant, the black and white dual-core conductors are safely encapsulated in a durable 5.8mm flame-retardant jacket rated for 6KV spark testing. Designed for reliable power distribution, this pre-configured assembly ensures optimal conductivity and safety in low-voltage electrical and solar applications.
Add to Quote
- Product Code SLCBL-55
- Finished Outer Diameter O.D 5.8±0.1mm
- Applicable Standard UL62
- Conductor Specification 18AWGX2C
- Conductor Structure 0.16mm X41 PCS
- Conductor Resistance at 20°C ≤32Ω/Km
- Bunch Stranding 56.99mm
- Insulation Thickness 0.38mm(Standard thickness) 0.33mm(Minimum thickness)
- Finished Outer Diameter O.D 2.1±0.10mm
- Flame Detection Voltage 6KV
- Cable Winding Specification 57mm(Sheave pitch) 4.2mm(Outer Diameter after Stranding)
- Direction of Lay Right
- Coating Thickness 0.76mm((Standard thickness) 0.61mm(Minimum thickness)
- Flame Detection Voltage 6KV
- 2-Year Limited Material and Parts Workmanship Warranty
