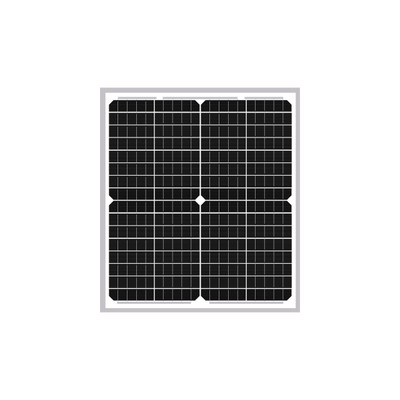

20W 12V-R MONOCRYSTALLINE SOLAR PANEL
- (030P3001A)
- In stock
- SKU:
- ST-20P-12-R
Add to Quote
Introduction: ST-20P-12-R(020P3203A) utilizes high efficient monocrystalline solar cells and the latest solar module production technology. It is widely used in various 12V off-grid applications such as security monitoring, communication systems, and pest control devices., etc. Its sturdy aluminum frame, thick back plate, and specialized junction box ensure that the module can withstand various weather conditions and provide its expected energy output. Key Features: Monocrystalline cell efficiency: 20% Up to 5 watts of power output 12 volts DC output Durable and reliable construction Ability to withstand harsh environmental conditions Lightweight and easy to install
- Electrical Characteristics
- Module Type 020P3203A
- Maximum power (Pmax) 20W
- Voltage at Pmax (Vmp) 18.53V
- Current at Pmax (Imp) 1.08A
- Open-circuit voltage (Voc) 21.37V
- Short-circuit current (Isc) 1.14A
- Module Efficiency 20% *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25°C
- Rating Characteristics
- Operating temperature -40°C to 85°C
- Maximum system voltage 1000V DC
- Power tolerance ± 5%
- Module Fire Performace Type 1 (for US)
- Fire Resistance Rating Class C (For Canada)
- PV module application class Class A
- Temperature code rating T3C *NOCT: Nominal operating cell temperature (the data is only for reference)
- Specifications
- Cells Monocrystalline silicon solar cell
- No. of cell and connections 32(4X8)
- Module dimension 15.35in. x 14.17in. x 1.18in. [390mm x 360mm x 30mm]
- Weight 4.00lbs[1.81kg]
- Temperature Characteristics
- Temperature coefficient of Voc -(80±10)mV/°C
- Temperature coefficient of Isc (0.065±0.015)%/°C
- Temperature coefficient of power (0.5±0.05)%/°C
- NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
