NR Series P2430N & P2440N

(030P3001A): In stock
SKU:: P2430N & P2440N
UPC:

This 30A PWM Charge Controller with 12/24V auto-switch capabilities makes a great choice for your next install.
Key Features:
PWM Controller
Over-Charge, Overload, Over Discharge & Reverse Connection Protection
Increased Charging Efficiency
Battery Type: GEL, SEL, FLD, LI, USE
Bluetooth Capabilities

30A

RATED CURRENT

12V/24V (Auto)

SYSTEM VOLTAGE

Add to Quote

Overview
Specifications
Downloads

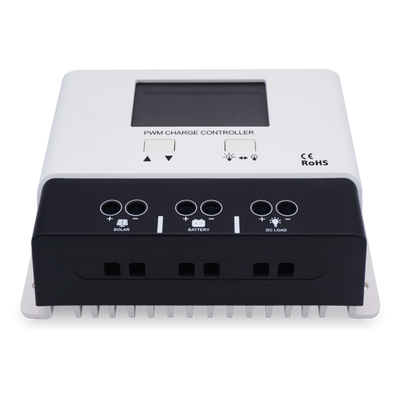

This SLD Tech PWM NR Series Charge Controller detects the optimum operating voltage and amperage of the solar array to match the battery bank. The result can increase the charging efficiency of the solar panel by up to 6% compared with non-PWM charging.

Electrical Characteristics
Module Type P2430N & P2440N
Max Charging Current 30A & 40A
System Voltage 12V/24V
Max PV Input 450W @ 12V ; 900W @ 24V
Equalization Voltage 14.6 – 14.8V*n
Boost Voltage 14.2 – 14.6V*n
Float Charge Voltage 13.8V*n
Boost Charge Recovery Voltage 13.2V*n

Rating Characteristics
Battery type GEL, SEL, FLD, LI, USE
Max PV Input Voltage 55V
Operating temperature -35°C~+45°C

Specifications
Module dimension 159×110×59mm
Weight 1.43lbs（0.65kg)

Download

2 Year Warranty
