NR Series M2430C

NR Series M2430C

(030P3001A)
In stock
SKU:
M2430C

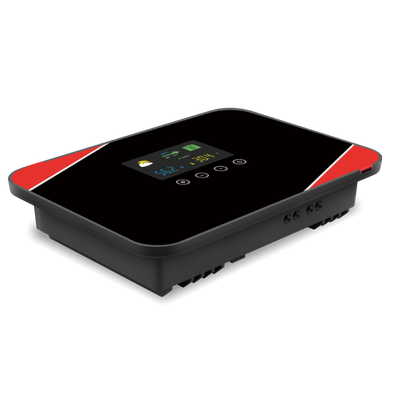

This 30A MPPT Charge Controller with 12/24V auto-switch capabilities makes a great choice for your next install.
Key Features:
MPPT Controller
Automatic Charge/Discharge Parameters
Increased Charging Efficiency
Battery Type: GEL, SEL, FLD, LI, USE
Bluetooth Capabilities

30A

RATED CURRENT

12V/24V (Auto)

SYSTEM VOLTAGE

Add to Quote

This SLD Tech MPPT NR Series Charge Controller detects the maximum operating voltage and amperage of the solar array to match the battery bank. You can rely on this controller to deliver the highest level from your solar array to your battery bank.

  • Electrical Characteristics
  • Module Type M2430C
  • Max Charging Current 30A
  • System Voltage 12V/24V
  • Max PV Input 450W @ 12V ; 900W @ 24V
  • Equalization Voltage 14.6 – 14.8V*n
  • Boost Voltage 14.2 – 14.6V*n
  • Float Charge Voltage 13.8V*n
  • Boost Charge Recovery Voltage 1q.1V*n
  • Rating Characteristics
  • Battery type GEL, SEL, FLD, LI, USE
  • Max PV Input Voltage <100V
  • Operating temperature -35°C~+45°C
  • Specifications
  • Module dimension 250×180×53.2mm
  • Weight 1.76lbs(2.20kg)
Download
Download

2 Year Warranty

!
