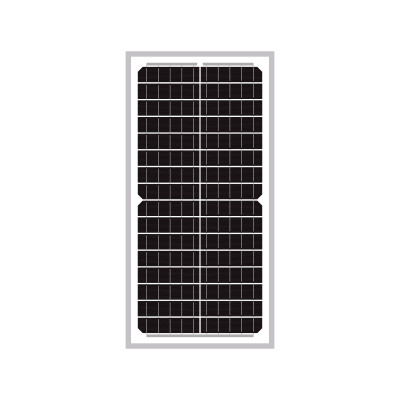

10W 12V MONOCRYSTALLINE SOLAR PANEL

10W 12V MONOCRYSTALLINE SOLAR PANEL

(030P3001A)
In stock
SKU:
ST-10Q-12
32 CELL

MONOCRYSTALLINE MODULE

10W

POWER OUTPUT

20%

MODULE EFFICIENCY

5%

POSITIVE TOLERANCE

Add to Quote

  • Nominal 12V DC for standard output.
  • Outstanding low-light performance.
  • Heavy-duty anodized frames.
  • High transparent low-iron, tempered glass.
  • Designed to withstand high wind pressures, hail and heavy snow.
  • Quality aesthetic appearance.
  • Electrical Characteristics
  • Module Type ST-10Q-12
  • Maximum power (Pmax) 10W
  • Voltage at Pmax (Vmp) 18.34V
  • Current at Pmax (Imp) 0.55A
  • Open-circuit voltage (Voc) 21.57V
  • Short-circuit current (Isc) 0.59A
  • Module Efficiency 20%
    • *STC: Irradiance 1000W/m2 , AM1.5 spectrum, module temperature 25°C
  • Rating Characteristics
  • Operating temperature -40°C to 85°C
  • Maximum system voltage 1000V DC
  • Power tolerance ±5%
  • Module Fire Performace Type 1 (for US)
  • Fire Resistance Rating Class C (For Canada)
  • PV module application class Class A
  • Temperature code rating T3C
    • *NOCT: Nominal operating cell temperature (the data is only for reference)
  • Specifications
  • Cells Monocrystalline silicon solar cell
  • No. of cell and connections 32(2x16)
  • Module dimension 17.32in. x 8.66in. x 1.18in. [440mm x 220mm x 30mm]
  • Weight 2.96lbs[1.34kg]
  • Temperature Characteristics
  • Temperature coefficient of Voc -(80±10)mV/°C
  • Temperature coefficient of Isc (0.065±0.015)%/°C
  • Temperature coefficient of power -(0.5±0.05)%/°C
  • NOCT (Air 20°C; Sun 0.8kW/m2 wind 1m/s) 47±2°C
Download
Download

*Limited warranty: 2-year limited warranty of materials and workmanship; 10-year limited warranty of 90% power output; 25-year limited warranty of 80% power output. For detail, please view full Warranty & Policy page

!
